This page is dedicated to wall panel equipment including panel lines, wall saws and other related machinery.

Item No. W42971 2019 Triad Steel Stud Framing Table Steel Stud Framer - Model DQSF. Designed to frame steel stud wall panels (Machine has been customized to accommodate 8'-11" to 13'- 4" hts), to 16-ft long. Materials can be laid-up quickly using color-coded stud locator flippers. The studs can then be fastened quickly with the rolling Twin Screw Dollies with electric screw guns. Each gun can be separately controlled at each stud and can drive through materials of differing gauges. Each gun automatically retracts and the operator can move the dolly smoothly along the dolly rail to the next stud location ( Stud Locators at 16" and 24" OC ). Includes Pop-up rollers. Price: $ 52,900 Condition: Good + Location: CA

System also includes: • Triad Rough Opening Component Assembly Table (RO-CAT) • Triad Skate Wheel Conveyor - 10' double section • Triad Roller Conveyor - 15' x 36" double section

Item No. W42324 2021 Triad Econo-Framer 32' Econo-Framer Wall Panel Table. Single Outrigger, With Ro-Cat Assembly Table & Roller Conveyors. Price: $ 32,900 Condition: Very Good Location: NC

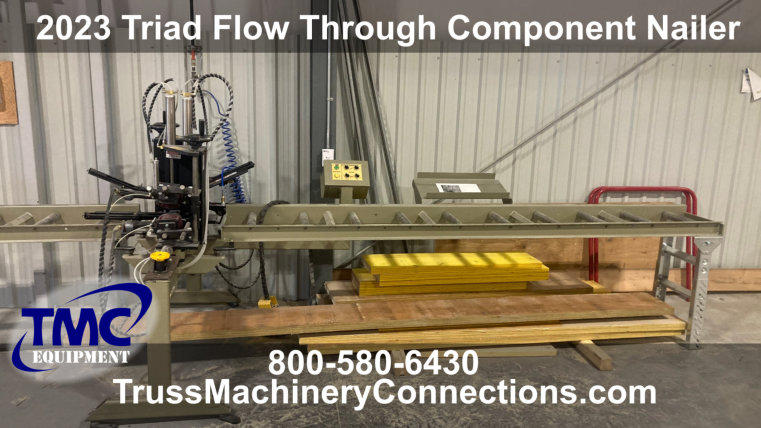

Item No. W42321 2023 Triad Flow Through Component Nailer Ideal for trimmers, partition leads, corners, headers, ells, jack studs, and more. Excellent working condition. • Air Requirements: 4 CFM, 100 PSI • Length Capacity: 122″ (10’ 2″) • Size: 4’ H x 21’L x 5’W • Weight: approx. 1500 lbs. Note: Sold without nail guns. Price: $ 19,900 Condition: Excellent Location: ON Canada

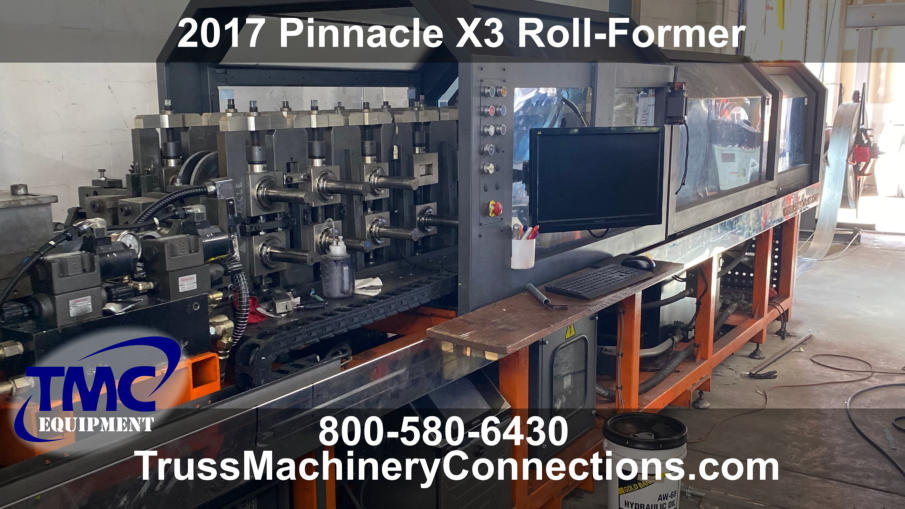

Item No. M42002 2017 Pinnacle X3 Roll-Former Steel Stud & Track Rollformer by Pinnacle. Produces stud & track members from 2 1/2" to 8" widths with 24 gauge to 16 gauge steel. Also features a Decoiler. Length: 143.3″ Width: 29.8″ Height: 61.9″ Weight: 5,949 lbs Note: Machine is currently in operation. Price: $ 375,900 Condition: Good + Location: TN

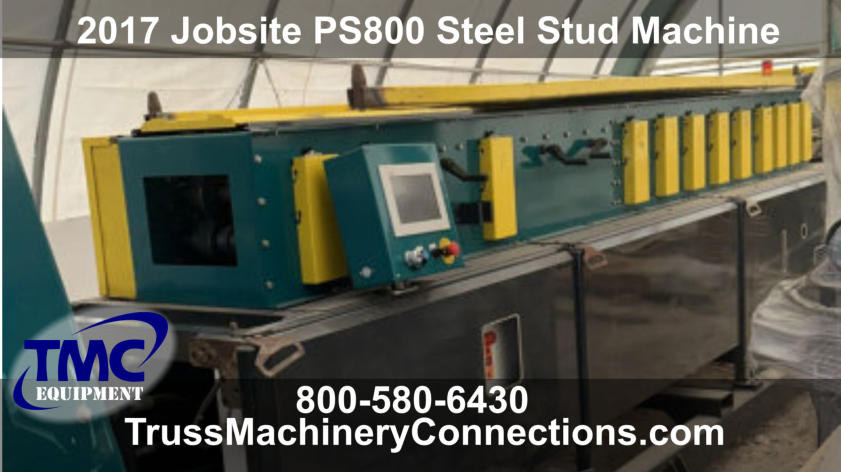

Item No. M41851 2017 Jobsite PS800 Steel Stud Machine Steel Stud & Track Rollformer by Jobsite. Roll forms steel stud and track members for use in wall, floor and truss framing. The standard machine produces stud & track members from 3⅝" (92.1mm) to 8" (203.2mm) widths and 26 gauge to 14 gauge steel. Length: 245″ Width: 44″ Weight: 5,900 LBS Equipment Power Requirement: 380/460V, 3ph/50/60Hz, 30 Amp Price: $ 199,900 Condition: Good Location: TN

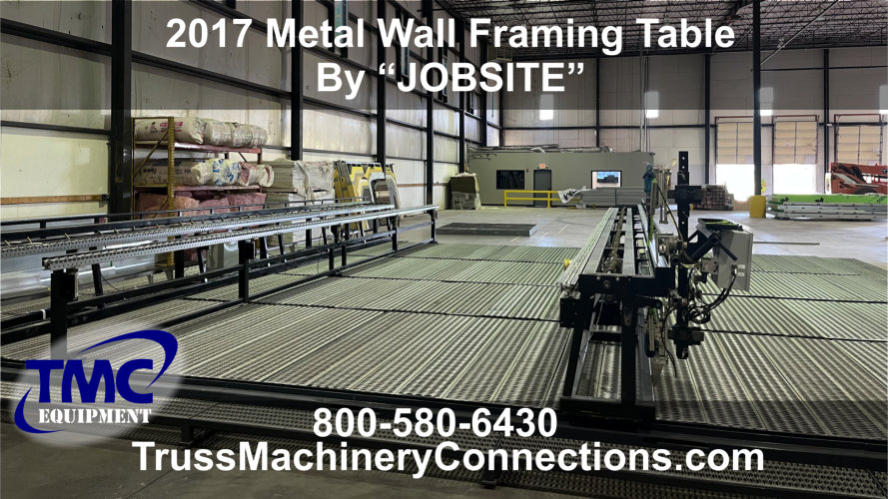

Item No. W41201 2017 Metal Wall Framing Table By “JOBSITE” Model SFS • Material Type/Width: 3-5/8“ - 10” Wide, 26- 14 Gauge Steel • Min/Max Wall Hts: 4’-2” to 27’-0” • Max Wall Length: 30’-5” • Drill Gun Carriages With Pneumatic Linear Thrust Cylinders • Roller Ejectors for Panel Dismount • Builds Standard Wall Panels and Raked Wall Panels • Weight Approx 16,000 lbs • Includes Manual Price: $ 99,900 Condition: Good + Location: AR

Item No. WS40152 Industrial Up-Cut Saw with Hain System 2000 Industrial Model N510 Up-Cut Saw and 20' Hain Measuring System. Up-Cut saw with 20 ft Hain measuring system. Also inlcudes 10 ft infeed rollers. Hinged saw guard, foot operated saw actuation, and motor control with push button station. 2" x 12" Max Widths, right-to-left Feed ; 5 HP motor, 1" arbor size. Note: Current owner used the saw to cut wall plates. Price: $15,900 $12,900 Condition: Good Location: ND

Item No. MS31372 Omni Miser Automated Cut-Off and Marking Saw • Magazine Feeders (9) • Bulk Feeder • Live Deck Note: This is a non-working unit and is being sold as PARTS ONLY Price: $ Make Offer Condition: Parts Only Location: CA

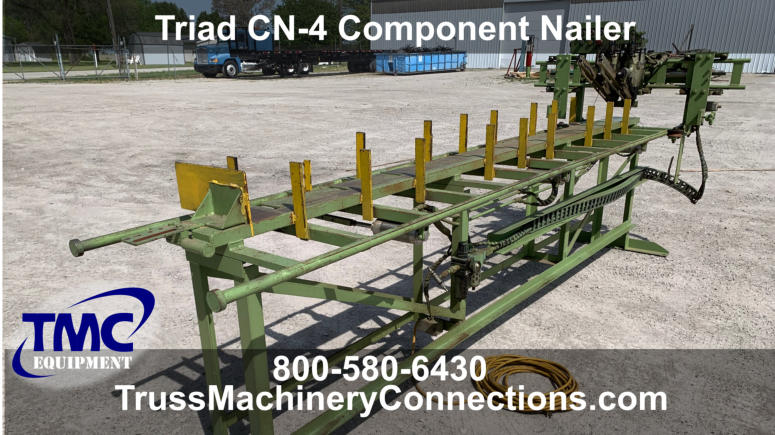

Item No. W21442 Triad CN-4 Component Nailer Semi-Automatic Component Nailer makes top quality housing components efficiently. Accurately locates, presses, and nails part. Size: 153" L x 54" W x 67" H, Weight: approx. 1500 lbs. (Manual and Photo Diagrams available in a PDF format) Price: $12,900 $9,900 Condition: Good Location: IN

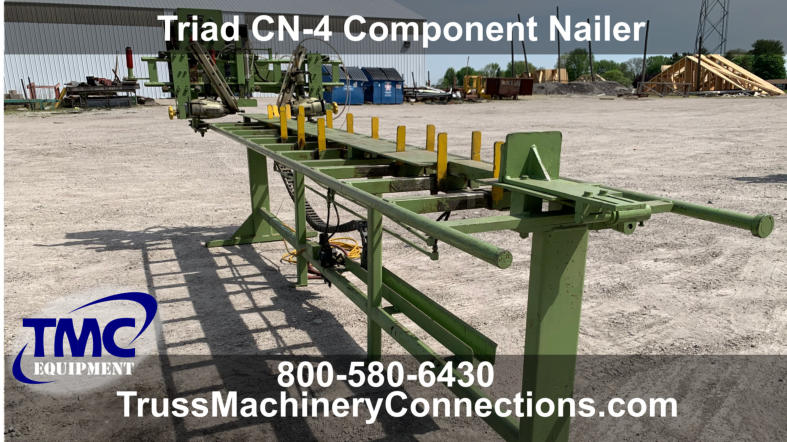

Item No. W21443 Triad CN-4 Component Nailer Semi-Automatic Component Nailer makes top quality housing components efficiently. Accurately locates, presses, and nails part. Size: 153" L x 54" W x 67" H, Weight: approx. 1500 lbs. (Manual and Photo Diagrams available in a PDF format) Price: $12,900 $9,900 Condition: Good Location: IN

Item No. WS41381 2020 Hornet Wall Saw by Mitek The Hornet saw system is an automated wall panel plate marking and cutting system. Fast and accurate plate marking and cutting of top and bottom wall plates simultaneously. Includes operator touch screen, automated length stop, inkjet print system, infeed/outfeed tables and chop saw. Price: $ 65,900 SOLD Condition: Excellent Location: AL

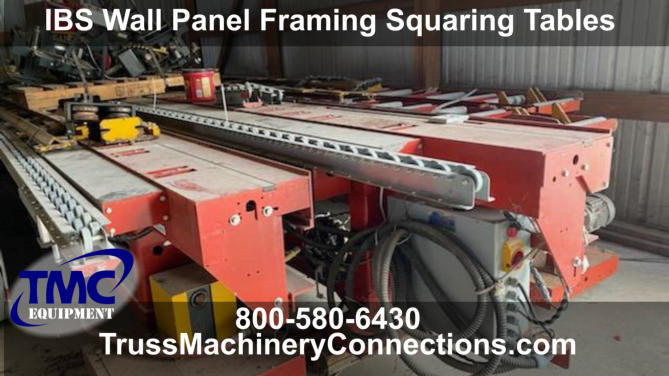

Item No. W21531 IBS Wall Panel Framing & Squaring Tables • IBS Framing Tables With Nail Dollies and Light Bars • IBS Squaring Tables Price: $32,900 $24,900 $21,900 Condition: Good Location: MO

Item No. W02864 2019 TRIAD WALL PANEL LINE WITH COMPONENT NAILER Triad Wall Panel Line • DeWalt Saw w/ Infeed/Outfeed Roller Conveyor • 20' Powered Chain Conveyor • 10' Skatewheel Conveyor • Triad RO-CAT Assembly Table • 30' Skatewheel Conveyor • Triad Diamond Quad 12' x 16' Framing Table (No Tool Dollies) • 30' Roller Conveyor • Triad Wall Panel Lift (Excludes Electric Hoist) Component Table Line • Triad Flow-Through Component Nailer w/ Infeed/Outfeed Roller Conveyor (Excludes Nail Guns) • 20' Powered Chain Conveyor • 10' Skatewheel Conveyor Price: $60,000 $50,000 ea. (2 Systems Available) Condition: Good + Location: CA

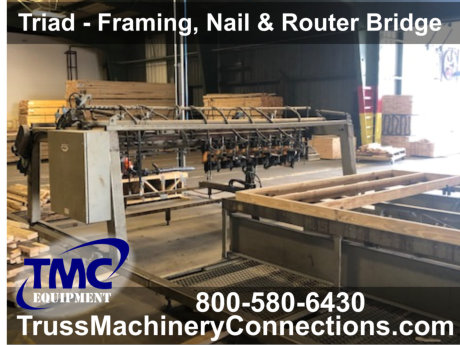

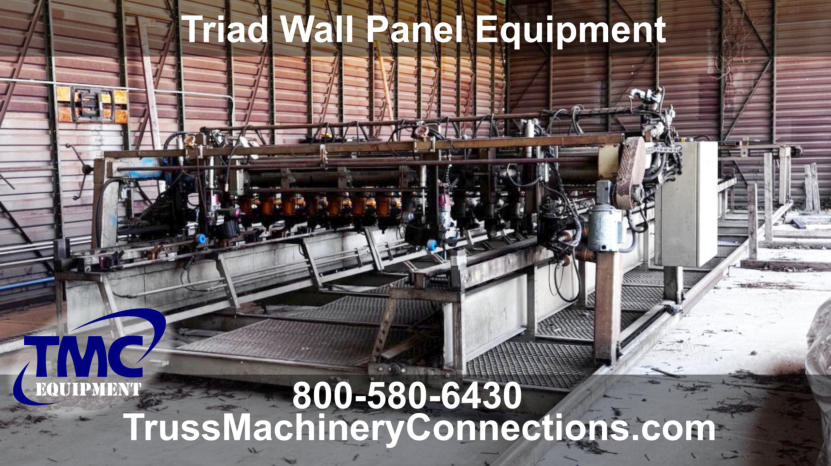

Item No. W200781 Triad Wall Panel Line Triad Wall Panel Equipment - Includes: • Framing Tables/Squaring Tables Combo Table • Sheathing/Framing Nailer Combo Bridge • Router Bridge Price: $39,900 Condition: Good Location: AL

Item No. MS01275 2004 Alpine PF 90 Cutting System with AutoMark Model 902B. Includes saw and PC with enclosure. (Disassembled and now in storage) Price: $9,900 $7,900 $6,900 Condition: Good- Location: FL

Item No. W071642 2007 Viking Wall Panel Line Semi Automated wall panel line featuring Panel- Pro event-driven software, touchscreen controls, powered tool carriages, auto stops, powered transfer, sheathing bridge w/ sensor nailing, and in-line routing. (System purchased new for $414,000) Price: $134,500 Condition: Very Good Location: IA

Includes the following: • 10' Component Station w/ Manual Skate-Roll Transfer • 16' Accumulation Conveyor w/ Manual Skate-Roll Transfer • 16' Prestaging Conveyor - Powered Rooftop Chain Transfer Swing Pivot Conveyor • 16' Framing Station - Automatic w/ Powered Chain Transfer and Auto Stops • 16' Accumulation Conveyor w/ Powered Chain Transfer • Routing Bridge - Semi-Automatic w/ Powered Chain Transfer • 16' Squaring Table w/ Powered Chain Transfer • 16' Sheathing Bridge - Automatic - w/ Powered Chain Transfer • 16' Accumulation Conveyor w/ Manual Skate-Roll Transfer • 12' Wall Panel Lift

Item No. W02952 2018 Wall Panel Line - Monet Complete wall panel line for interior/exterior walls • Monet Bridge Nailer • Squaring Tables W/ Pop-Up Ejectors • Framing Tables - Build Walls Up To 12’H x 16’L - Powered Ht Adjustment • Pair Of Component Tables With Pop-Up Skate-Wheel Ejectors • Misc Material Handling Roller Conveyors Price: $Make Offer$ Condition: Good Location: FL

Item No. W02955 IBS Sub-Component Nailer • 2x4 thru 2x12 Capacity • Remote Fire & 3-Way Clamping • Squaring Stop • Foot Pedal Control • Infeed & Outfeed Roller Conveyor • Excludes Paslode Nail Guns Price: $8500 Condition: Good Location: NE

[Ratings: Fair = 1-2, Good = 3-5, Very Good = 6-8, Excellent = 9-10]
